Features Overview

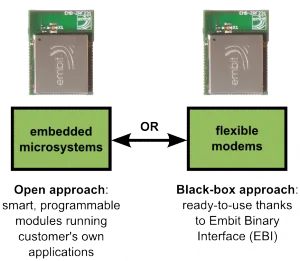

All Embit wireless modules share the embedded microsystems philosophy: the microcontroller inside the module is open to the customer that can develop his own firmware. Alternatively, Embit wireless modules can be employed as flexible modems employing simple AT-like commands (over UART, see EBI page for more info):

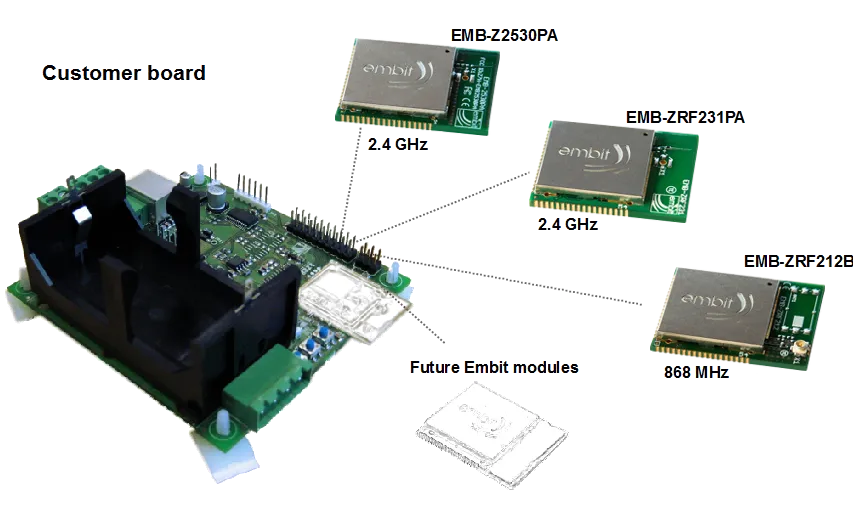

In addition, every Embit wireless module is designed to be easily replaceable with another Embit wireless module: they are all pin-to-pin compatible and with the same form-factor.
Other features common to all Embit wireless modules are:
- U.FL connector for external antennas (all)
- pads for RF routing to customer PCB antennas (EMB-ZRF212B, EMB-WMBx)
- EDGE connector forsimplified soldering on customer boards (all)
Such features allow the customer to maintain unaltered the hardware, firmware and software of his host board, and still ensure compatibility with future Embit wireless modules… this is what we call Embit Flexibility!
Sub-GHz Wireles Modules
| EMB-WMB169PA / EMB-WMB169PAE |
EMB-WMB868 | EMB-LR1272/EMB-LR1276 | EMB-LR1280S | |
| Frequency | 169 MHz | 868 MHz | 868 / 915 MHz | 2.4 GHz |
| Supported stacks | WMBUS | WMBUS | LoRa | LoRa |
| Supported EBI variants | EBI-WMBus. | EBI-WMBus. | EBI-LoRa. | EBI-LoRa. |
| Network topologies supported |  |
|
 |
|
|
|
|||
 |
|
|||
| MCU | MSP430 Core 5 | MSP430 Core 5 | SAMD20 | STM32L073 |
| FLASH / SRAM | 64 kB / 6 kB | 64 kB / 6 kB | 256 kB / 32 kB | 192 kB / 20 kB |
| RF transceiver | CC1120 | CC1120 | SX1272 / SX1276 |
SX1280 |
| Suggested for | Narrowband, low-power, long-range AMR devices; EN 13757-4 – compliant devices; applications where long battery-life is critical. | Low-powe, long-range AMR devices; EN 13757-4 – compliant devices; applications where long battery-life is critical. | Low-power, long-range devices; LoRaWan-compliant devices; applications where long battery-life is critical. |
2.4 GHz Wireless Modules
| EMB-Z2530PA | EMB-Z2538PA | |
| Frequency | 2.4 GHz | 2.4 GHz |
| Supported stacks | MAC 802.15.4, ZigBee. | MAC 802.15.4, ZigBee. |
| Supported EBI variants | EBI-802.15.4, EBI-ZigBee. | EBI-802.15.4, EBI-ZigBee. |
| Network topologies supported | |
|
|
|
|
|
|
|
 |
|
|
| MCU | CC2530 8051 | CC2538 |
| FLASH / SRAM | 256 kB / 8 kB | 512 kB / 32 kB |
| RF transceiver | Integrated | Integrated |
| Suggested for | Low power, short range devices; applications where mesh networks and reliable transport mechanisms (automatic ACKs, etc) are required. | Low power, short range devices; concentrator, network coordinator; applications where mesh networks and reliable transport mechanisms (automatic ACKs, etc) are required. |
