EMB-GPDONGLE-USB

General purpose USB dongle for wireless modules

EMB-GPDONGLE-USB is a USB dongle developed by Embit to allow costomers to quickly get started with Embit wireless modules.

Category:

Description

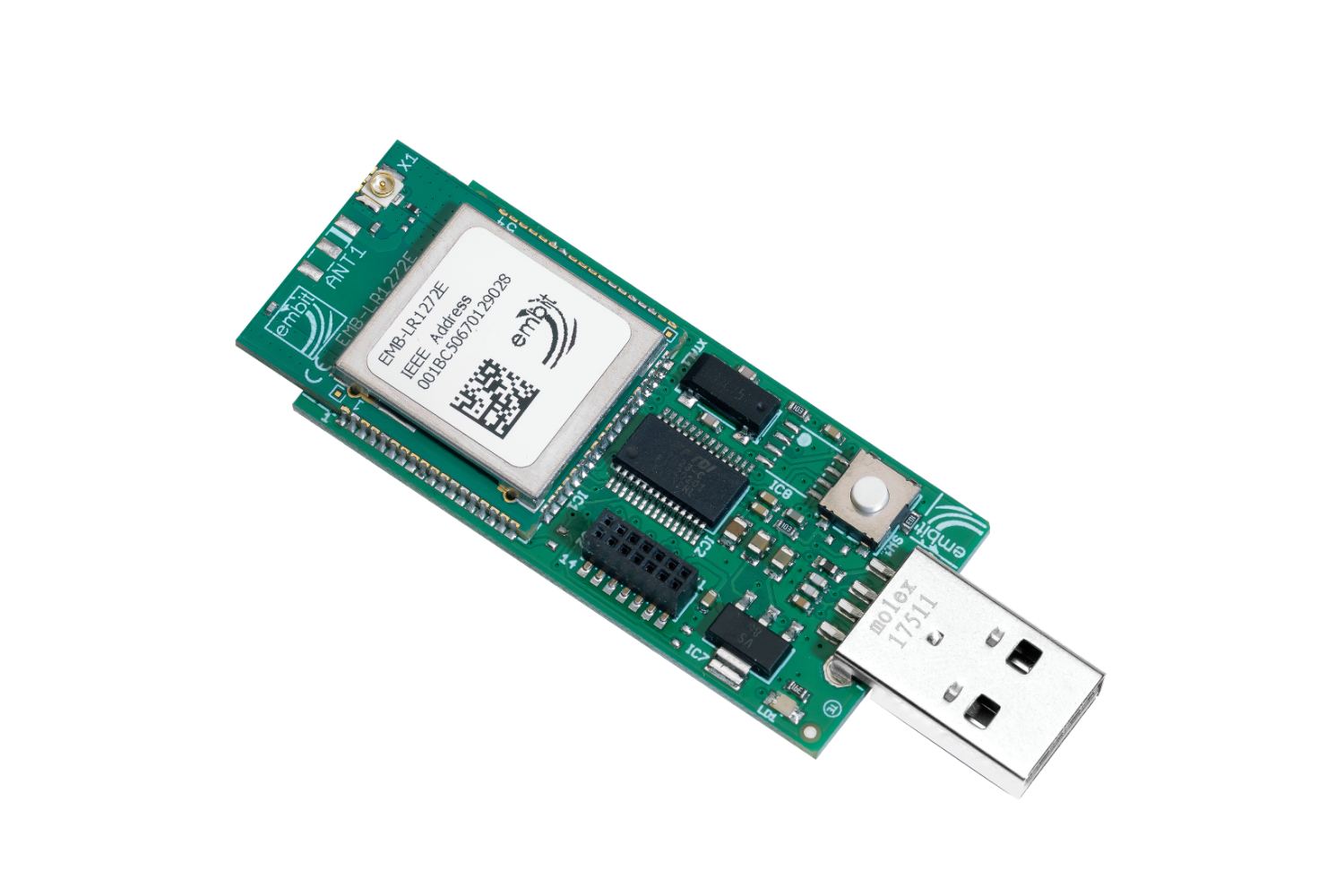

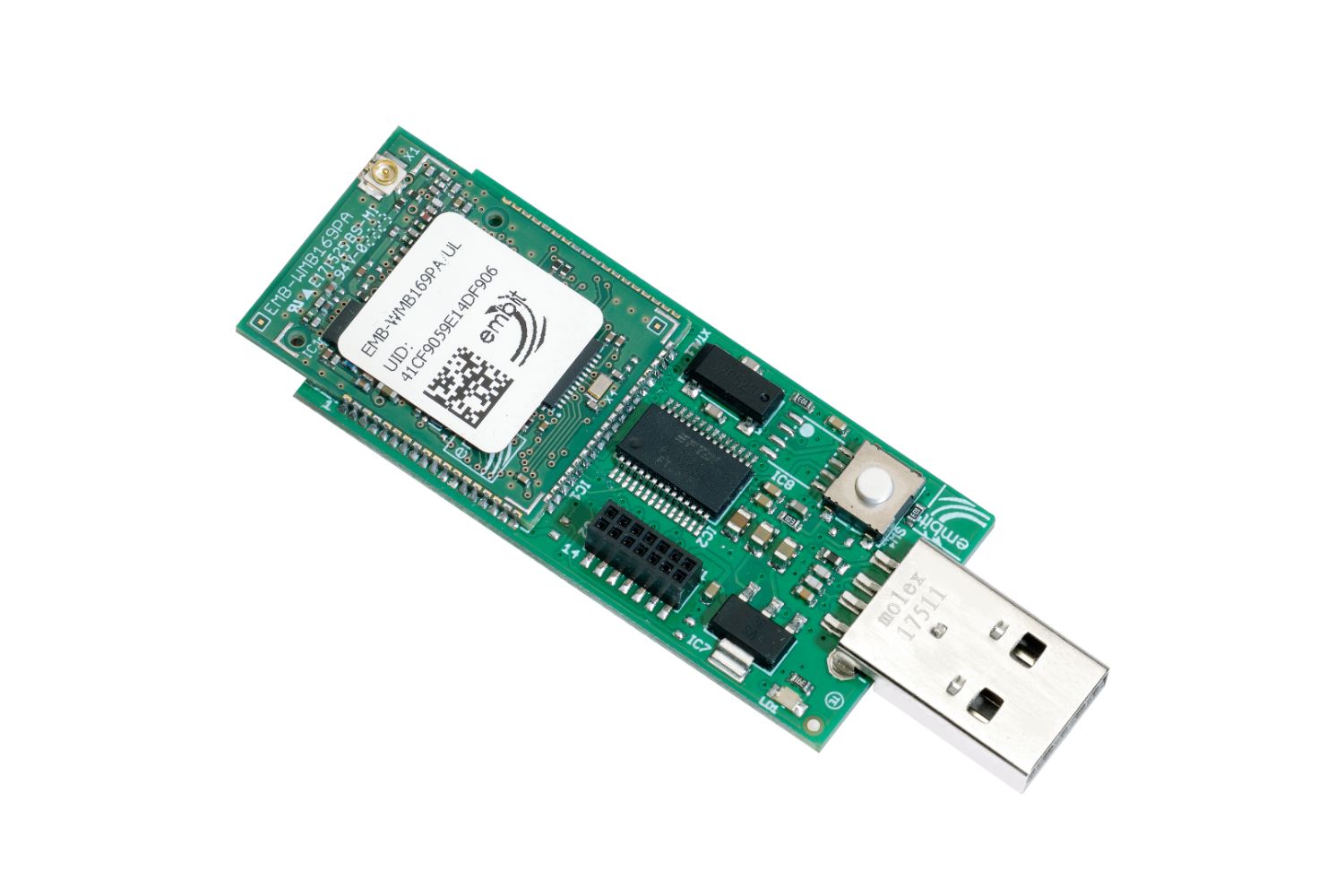

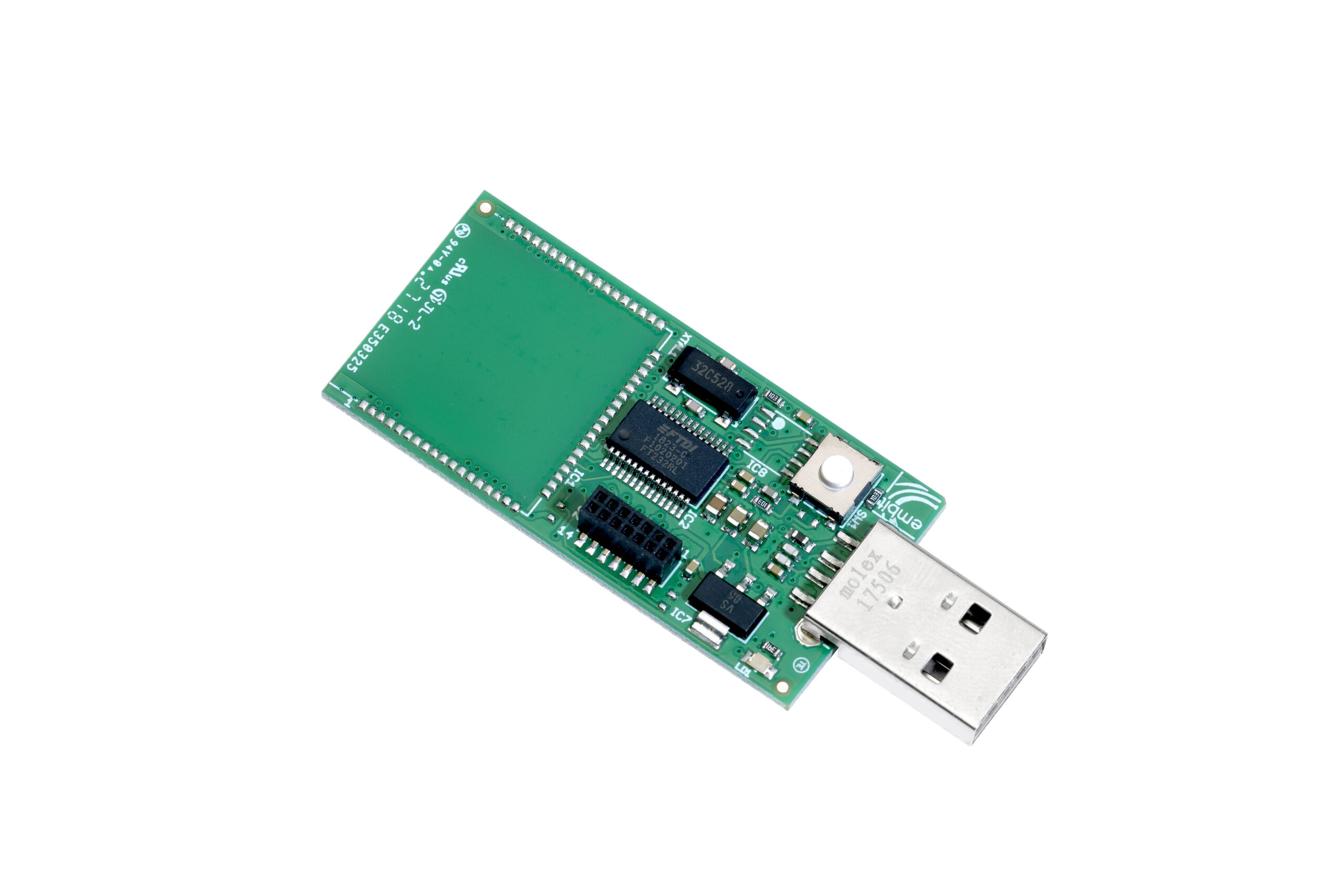

EMB-GPDONGLE-USB is a USB dongle developed by Embit to allow costomers to quickly get started with Embit wireless modules. The EMB-GPDONGLE-USB is a generic USB dongle that can host any Embit module (since they all employ the same form factor); the Embit wireless module selected by the costumer can be soldered on the available pads of the EMB-GPDONGLE-USB in a few minutes.

Then, connecting the USB dongle to an host device (e.g., a notebook) the costomer can immediately communicate and transfer data with the Embit wireless module soldered on the EMB-GPDONGLE-USB, and, through that module, over-the-air data can be transmitted and received.

Notable features include:

  • can be used as over-the-air sniffer
  • any Embit module can be soldered on it!

Technical Specifications

  • USB 2.0 full speed transceiver
  • 1 LED and 1 push button
  • 32 kHz crystal
  • embit programming interface
  • Compact form factor: 52 x 25 x 7 mm
  • Supply: 5V (from USB)

USB Driver

The USB driver is available for a variety of operating systems from FTDI website.

Installation is as simple as:

  1. download the driver from FTDI website;
  2. extract the downloaded ZIP file / run the downloaded executable;
  3. plug the USB dongle to an USB port of your PC.

Ordering Information

Part number: EMB-GPDONGLE-USB
