EMB-LR1276S

EMB-LR1276S is a 868 / 915 MHz wireless module that combines high performance to very small dimensions and low cost, providing the system integrator a simple and easy way to add LoRa® / LoRaWAN® long range connectivity into existing products.

Notable features include:

• output power can be set up to +18 dBm (~80 mW, for US) or to +14 dBm (~25 mW, for EU)
• sensitivity up to -136 dBm
• extremely reduced power consumption in low power mode (≤1 μA in XLP sleep)
• embedded IEEE EUI-64 address (EMB-LR1276S)
• open platform
• small form factor (11.5 x 11.5 x 2mm)
• Crypto Unit (Microchip ATECC608A) to protect communication

The EMB-LR1276S module is provided with an embedded LoRa®/LoRaWAN® stack specifically developed by Microchip that allows being compliant with the latest LoRaWAN® specifications, allowing a customer to develop firmware application and manage a compatible LoRa eco-system.

The EMB-LR1276S modules are programmed with EBI-LoRa which allows the customer to use the modules as a simple, ready-to-use modem (using AT-like commands over UART; see EBI protocol page for more information). The evaluation kit EMB-LR1276S-EVK is strongly suggested to customers willing to develop their own firmware applications since the kit provides all tools required to download a custom firmware on the module.

Please note that the EMB-LR1276S is available in 2 versions :

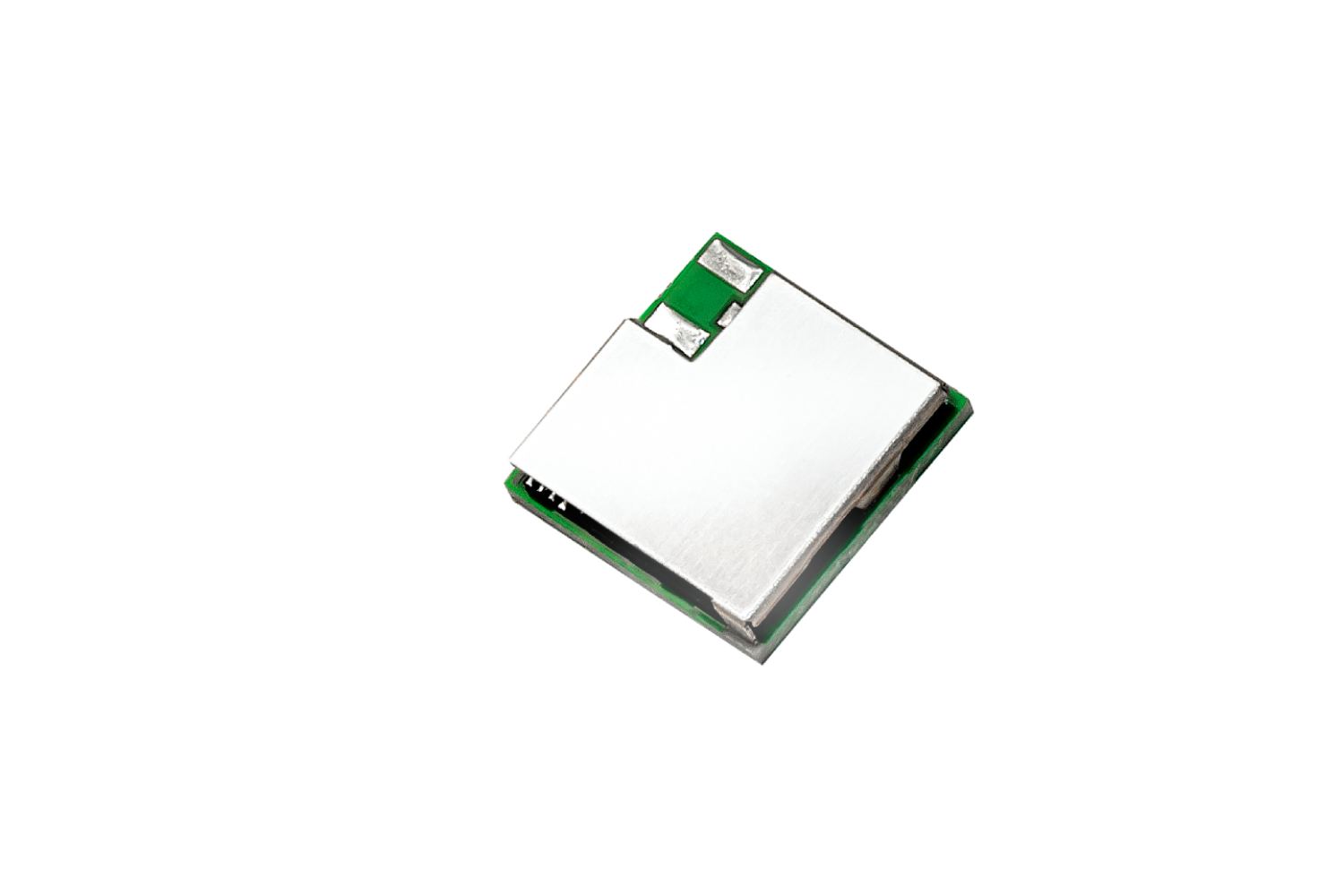

EMB-LR1276S/PC – Pad connector

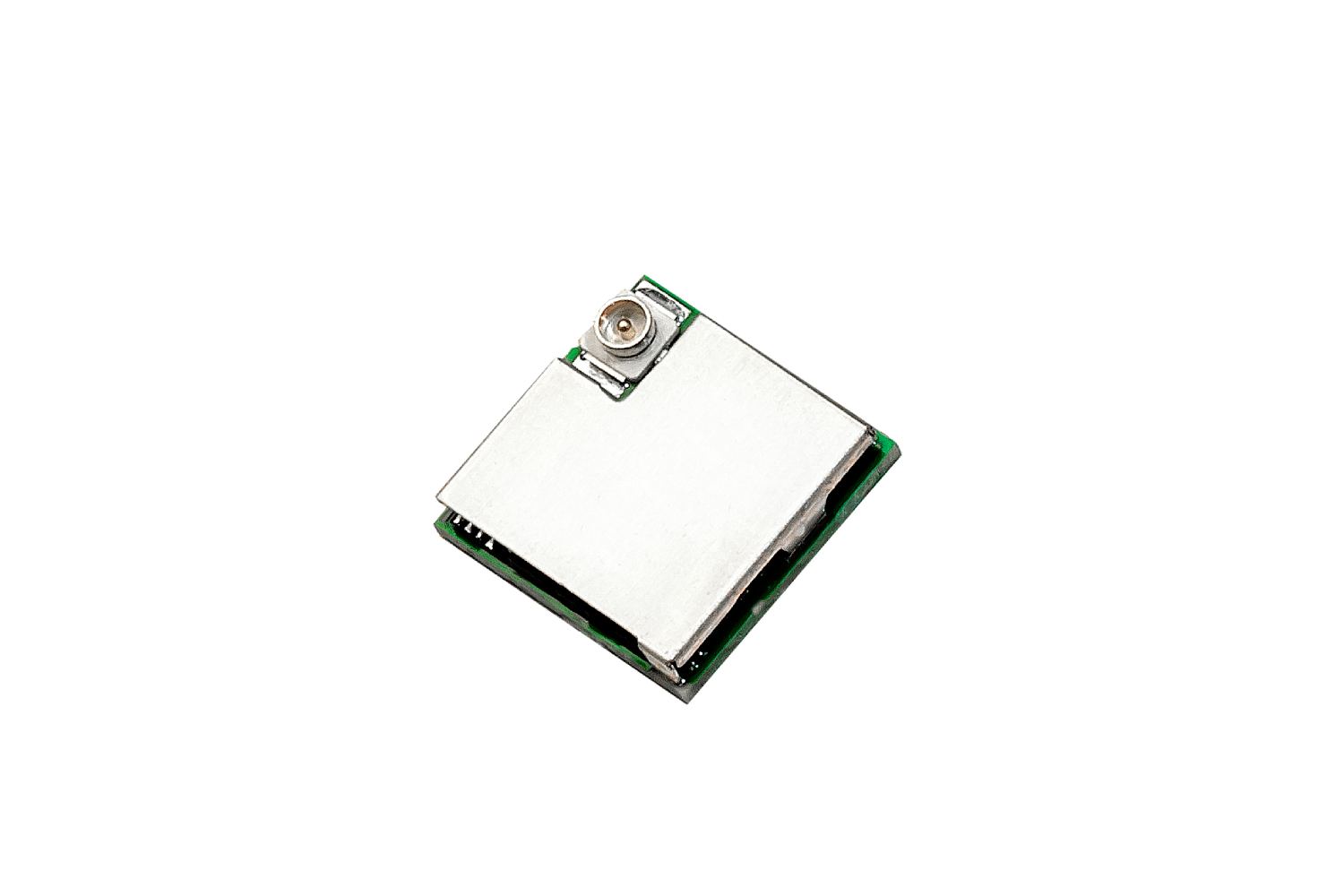

EMB-LR1276S/UL – with micro U.FL connector for external antenna.
