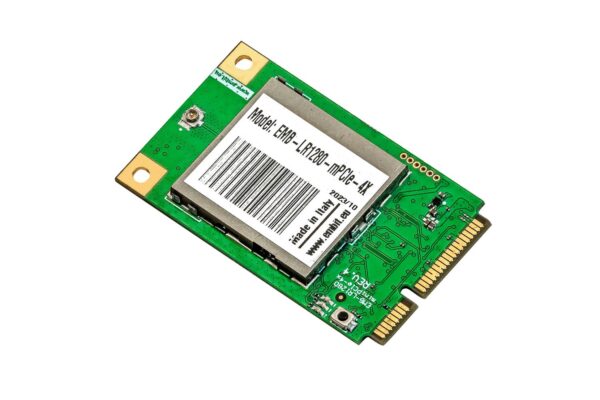

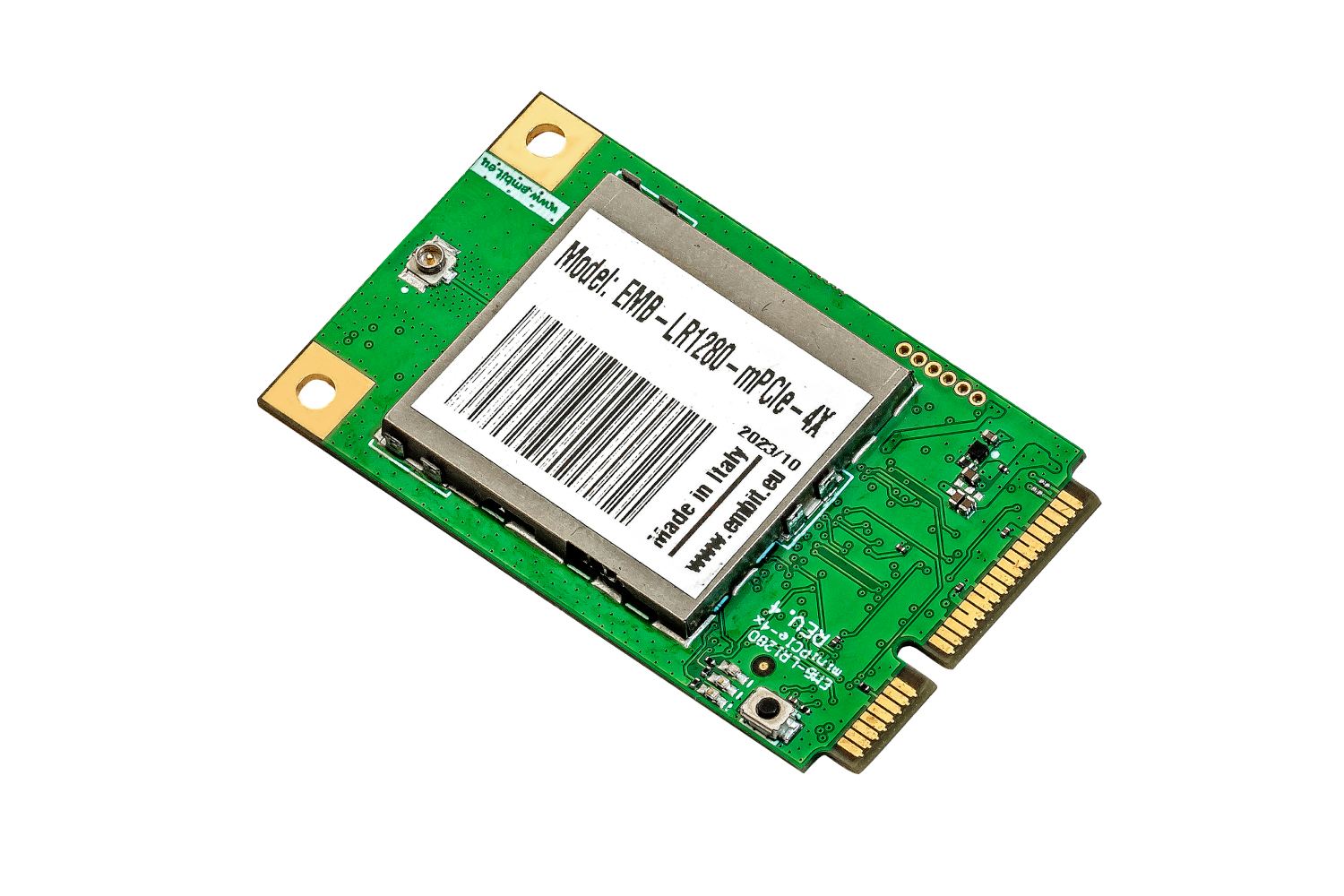

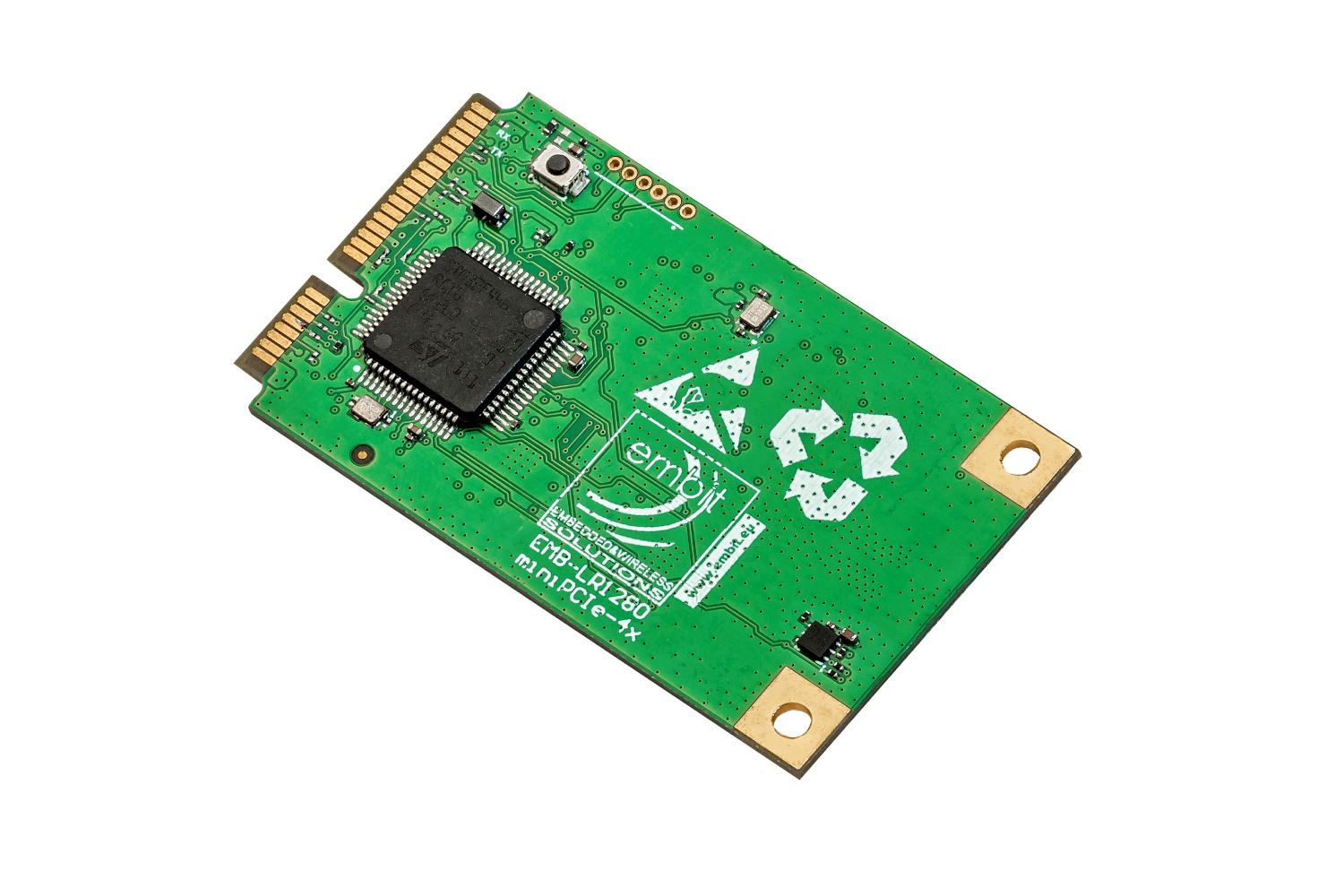

EMB-LR1280-mPCIe-4x

EMB-LR1280-mPCIe-4x provides long-range connectivity and high interference immunity exploiting Spread Spectrum modulation over the 2.4 GHz ISM band. It can operate worldwide being fully compliant with 2.4 GHz frequency band regulation.

EMB-LR1280-mPCIe-4x exploits 4 Semtech SX1280 radio transceivers to offer 3 dedicated channels for reception and 1 for transmission. It allows simultaneous reception of 3 LoRa® Channels with programmable data rate and it is able to achieve a sensitivity up to – 129 dBm. One Semtech SX1280 is dedicated to transmission, capable of achieving RF Output Power of + 12 dBm. Thanks to the intrinsic resilience of LoRa® modulation, the EMB-LR1280-mPCIe can operate in hostile RF environments coexisting with other widespread technologies like Wifi and Bluetooth.

EMB-LR1280-mPCIe-4x acts as Gateway in every star topology network which uses LoRa® 2.4 GHz modulation, deploying connectivity and services. The LoRa® modulation properties and 2.4GHz regulation make the EMB-LR1280-mPCIe-4x the perfect solution for numerous worldwide applications that require a LoRa® Gateway such as:

• Logistic and Supply Chain
• Industrial Monitoring and control
• Factory Automation
• Home & Building Automation
• Wireless alarm & Security System

Highlights

• Long-range connectivity using ultra-long range spread spectrum communication and high interference immunity on the 868/915 MHz radio band;
• 3 LoRa® simultaneous channels in the 2.4GHz frequency
• High sensitivity up to -129dBm and an RF output power up to +12 dBm
