EMB-Fem2GW-O
Fem2GW LoRaWAN® Gateway 868/915 MHz

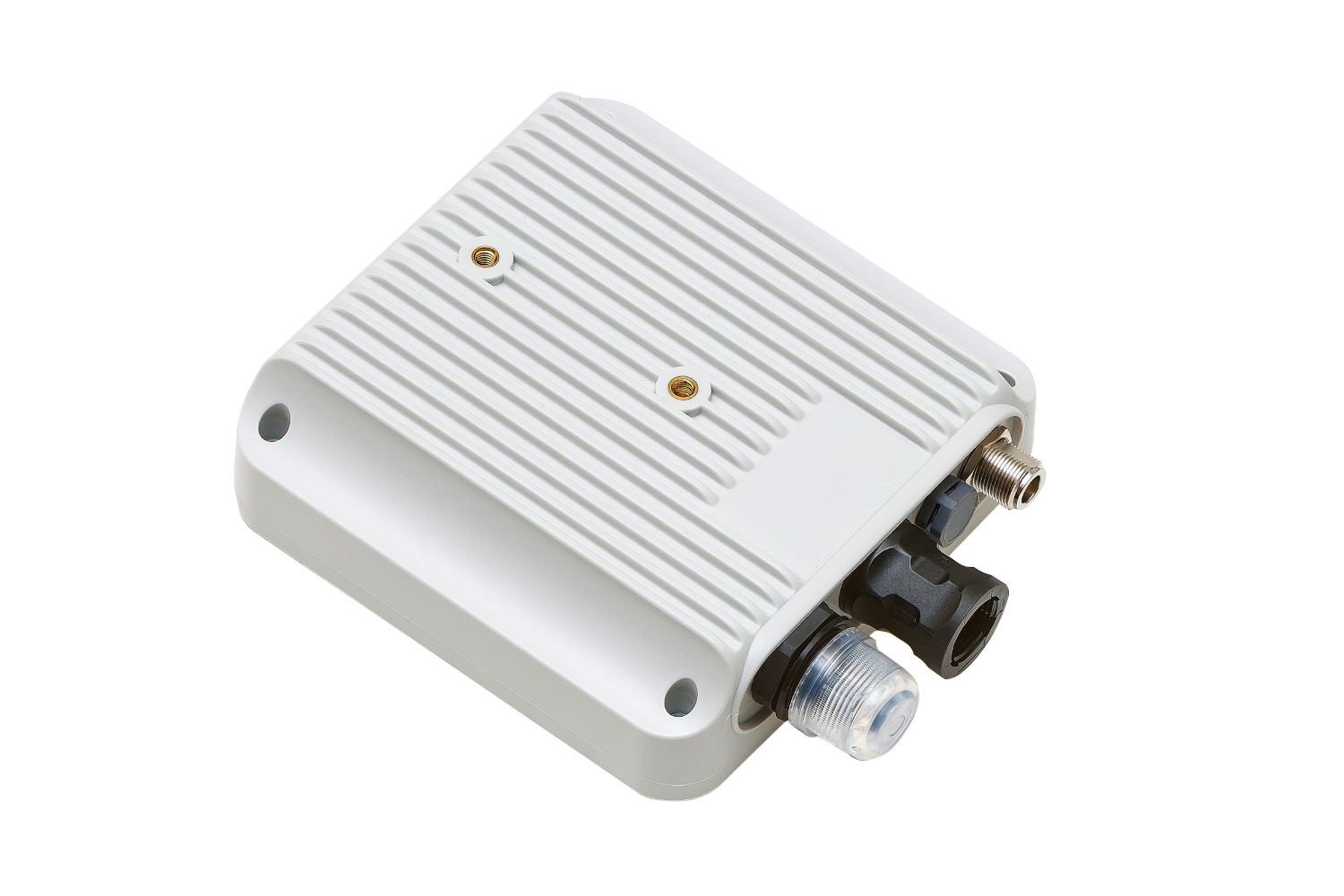

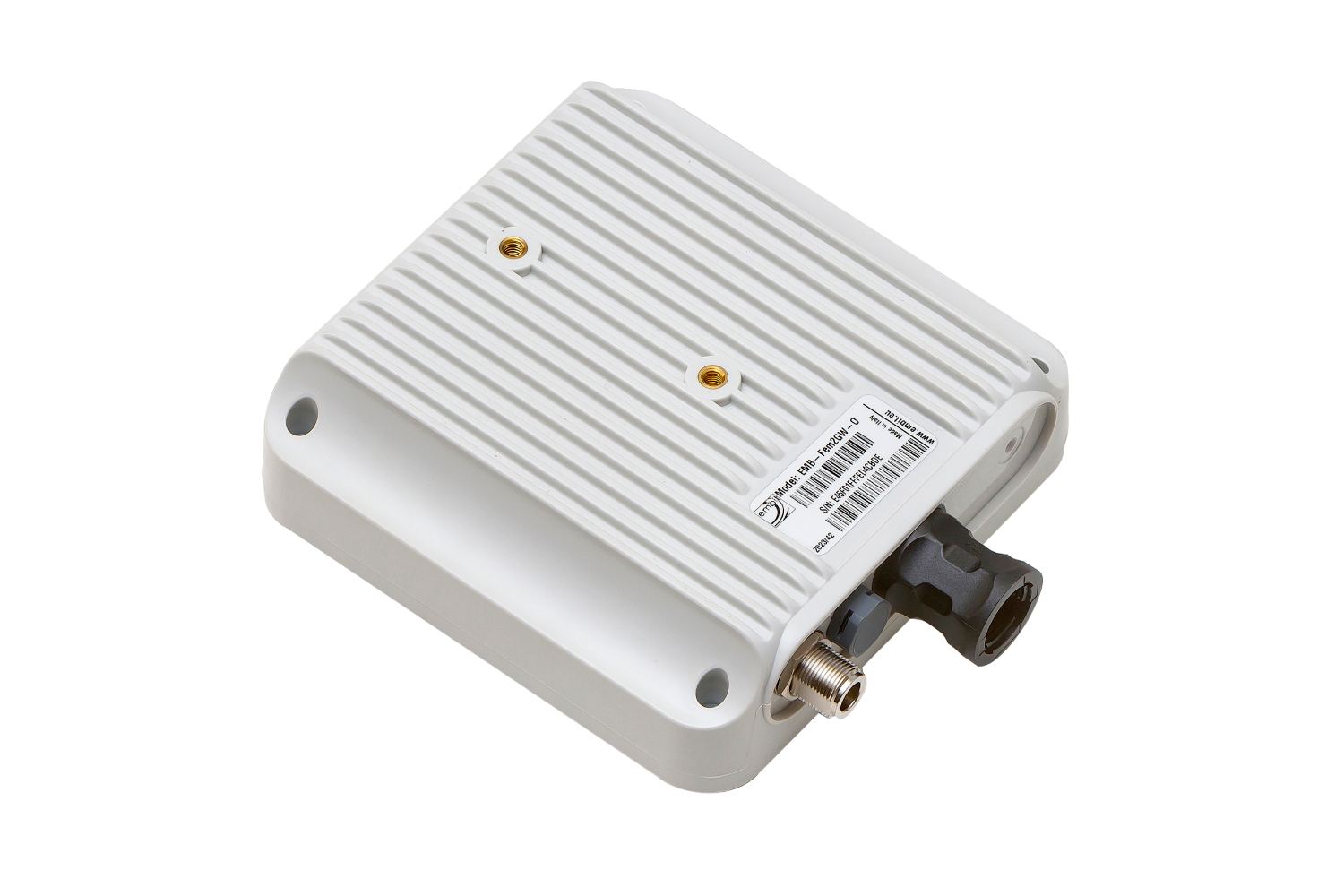

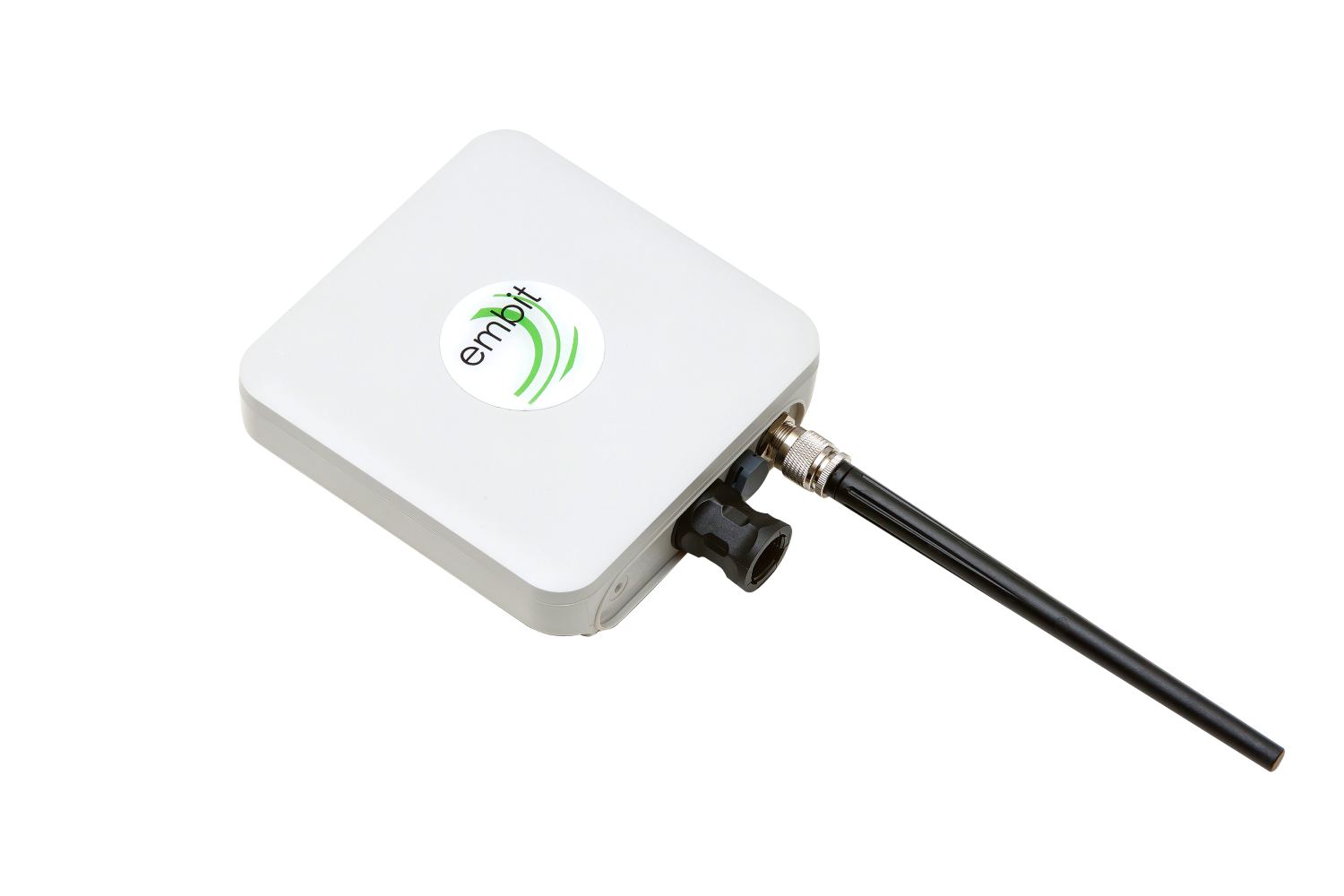

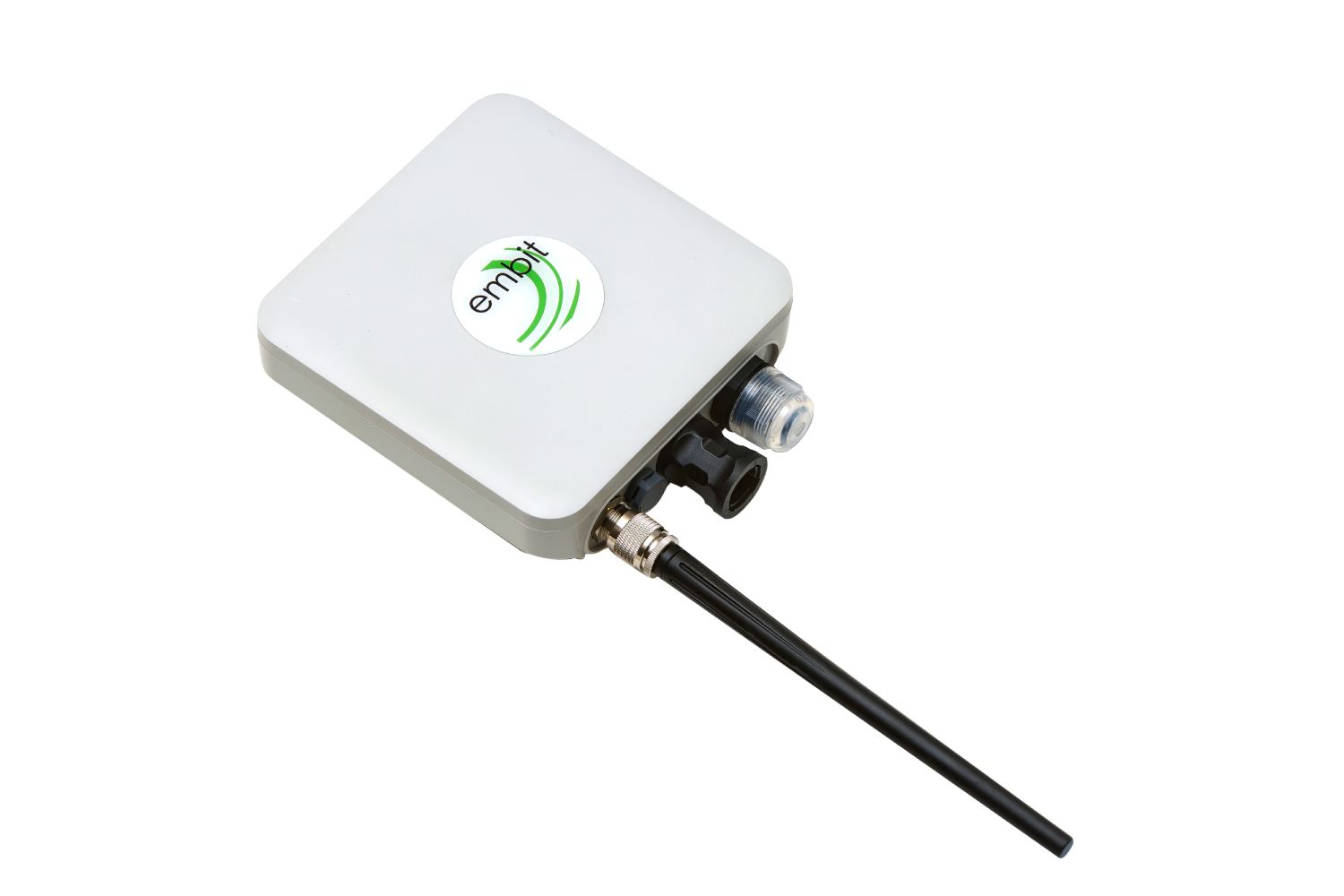

EMB-FEM2GW-O is a multi-protocol outdoor network platform, designed to meet IoT (Internet Of Things) and M2M (Machine-2-Machine) scenarios in smart city environment. It enables LoRaWAN® connectivity to the cloud, covering the role of fully compliant LoRaWAN® Gateway in the network and city infrastructure.
EMB-Fem2GW-O is a multi-protocol outdoor network platform, designed to meet IoT (Internet Of Things) and M2M (Machine-2-Machine) scenarios in smart city environment. It enables LoRaWAN® connectivity to the cloud, covering the role of fully compliant LoRaWAN® Gateway in the network and city infrastructure.
EMB-Fem2GW-O provides the LoRaWAN® packet forwarder functionality: the SX130x radio will start to operate as a LoRaWAN® base station, receiving radio LoRa® packets and forwarding them to a LoRaWAN® network server.
The EMB-Fem2GW-O is based on the EMBIT MiniPCI-express board (compatible with EMB-LR130x-mPCIe). It manages 8 LoRa® channels in order to handle thousands of end-devices. The Embit RF design is studied to cover up to 15 km in the country side and up to 3 km in urban areas. It is available both for the EU region (868 MHz) and US one (915 MHz).
Additional information
| Processor | MCU Broadcom BCM2837B0, Cortex – A53 (ARMv8) 64-bit SoC @ 1.2 GHz |
|---|---|
| RAM memory | RAM 1 GB LPDDR2 SDRAM |
| Flash memory | 8 GB Emmc |
| LAN connection | RJ 45 10/100/1000 |
| LoRaWAN® Connection | EMB-LR1301-mPCIe 8 LoRaWAN® Channels |
| Connectivity | GPS – 3G/LTE |
| Power supply | +12/+24 VDC (optional IEEE 802.3af PoE) |
| Operating temperature | -40°C to +85°C |
| OS | Embedded Linux |
| Dimensionsions | L:165 mm W:165 mm H:53 mm |
| Part Number | EMB-FEM2GW-O |
| Certifications | CE according to RED FCC pending |
Ordering Information
Part number: EMB-Fem2GW-O
For quotes, please use quotation form or contact our sales area at sales@embit.eu.
