EMB-GW1301-O
LoRaWAN® Gateway
EMB-GW1301-O is a multi-service upgradable platform designed to meet IoT M2M scenarios. It enables LoRaWAN® connectivity to the cloud, providing a cost-effective solution for IoT wireless infrastructure.
LoRaWAN® EMB-GW1301-O gateway is a multi-service upgradable platform designed to meet IoT M2M scenarios. It enables LoRaWAN® connectivity to the cloud, providing a cost-effective solution for IoT wireless infrastructure.
EMB-GW1301-O is based on the Semtech SX1301 chipset, allowing to operate on multiple channels at the same time. Thanks to the Semtech SX1301 performances and the efficient Embit RF design, the possible radio ranges are up to 15 km in the countryside and 3 km in urban areas. Network connectivity is provided by the Ethernet interface; optional radio communication interfaces (3G/4G/Wi-Fi) can be included.
EMB-GW1301-O can be preloaded with a specific customer’s firmware and configuration or whit the most well known LoRaWAN®network provider configuration.
The solution includes a Full OSS system with access to a cloud service for the provisioning and monitoring of the base station and the end-devices (alarms...).

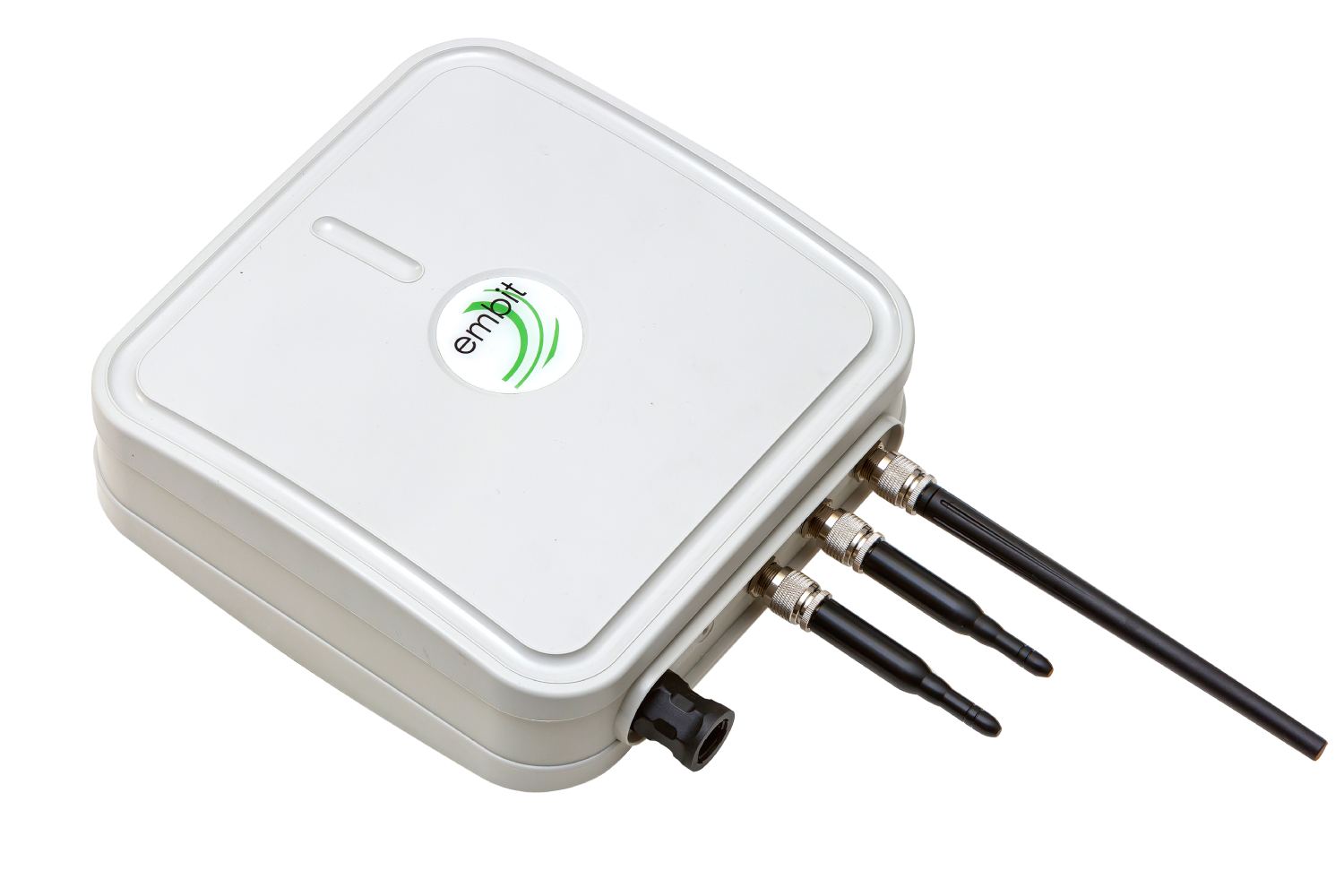

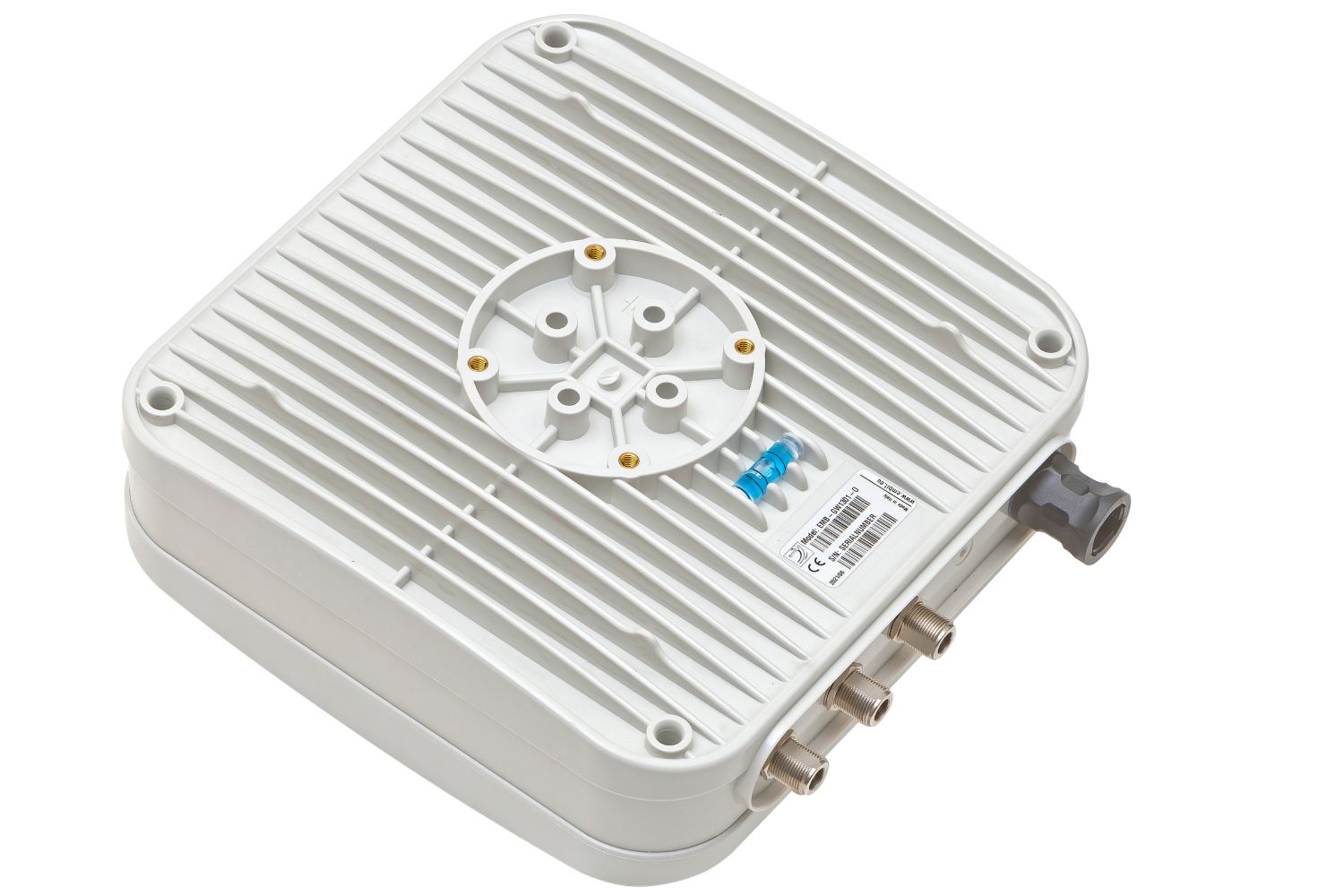

The system is provided with an IP 67 plastic case for outdoor usage including Power Over Ethernet and GPS.
Additional information
| Processor | ARM Cortex-A5 Atmel SAMA5D31 (@536MHz) |
|---|---|
| RAM memory | 256MB DDR2 |
| Flash memory | fino a 8GB |
| LAN connection | Ethernet RJ45 10/100 Base-T |
| Wireless interface | LoRaWAN® Semtech SX1301 +20/+27 dBm @868 MHz |
| Options | IEEE 802.11 b/g/n 3G/LTE, IEEE 802.15.4, WI-Fi, ZigBee® |
| OS | Embedded Linux |
| User interface | web interface |
| Power supply | POE 24V |
| Power supplier | DC Jack |
| Ports | Ethernet 10/100 RJ45 USB power supply, SMA for external antenna |
| Dimensionsions | length 240mm; width 160mm; height 90mm |
| Part Number | EMB-1301GW-O |
Ordering Information
Part number: EMB-GW1301-O
For quotes, please use quotation form or contact our sales area at sales@embit.eu.
